6207CE Ceramic Ball Bearing 35x72x17mm Non-Magnetic Electrically
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | Ceramic Ball Bearing |
| Certificación | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Número de modelo | 6207ce |
| Cantidad de orden mínima | 20-50pcs |
| Precio | negotiable |
| Detalles de empaquetado | Foam+Carton |
| Tiempo de entrega | 30-45 Día de las obras |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 2000pcs por mes |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | 6207ce | Material | Anillo ZrO2, bolas Si3N4, jaula de PTFE |
|---|---|---|---|
| Categoría | Rodamientos de bolas de ranura profunda de cerámica | Temperatura | Alto |
| Designación | 6207: Ø35 × Ø72 × 17 mm | Estructura del sello | Abierto |
| Aplicación | petróleo, industria química | ||
| Resaltar | 35x72x17mm Ceramic Ball Bearing,Non-Magnetic ZrO2 Bearing,Electrically Insulating 6207CE Bearing |
||
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Descripción de producto

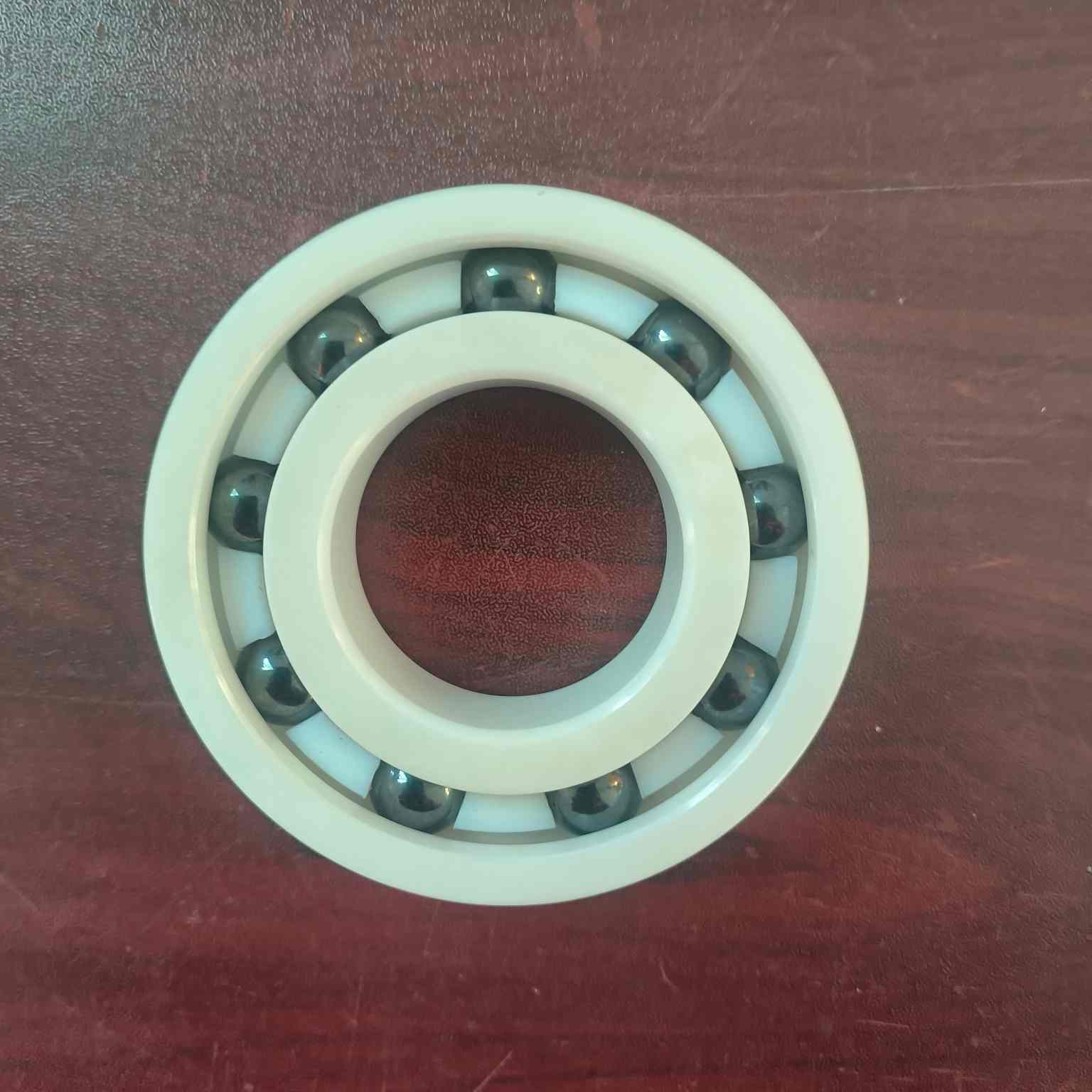

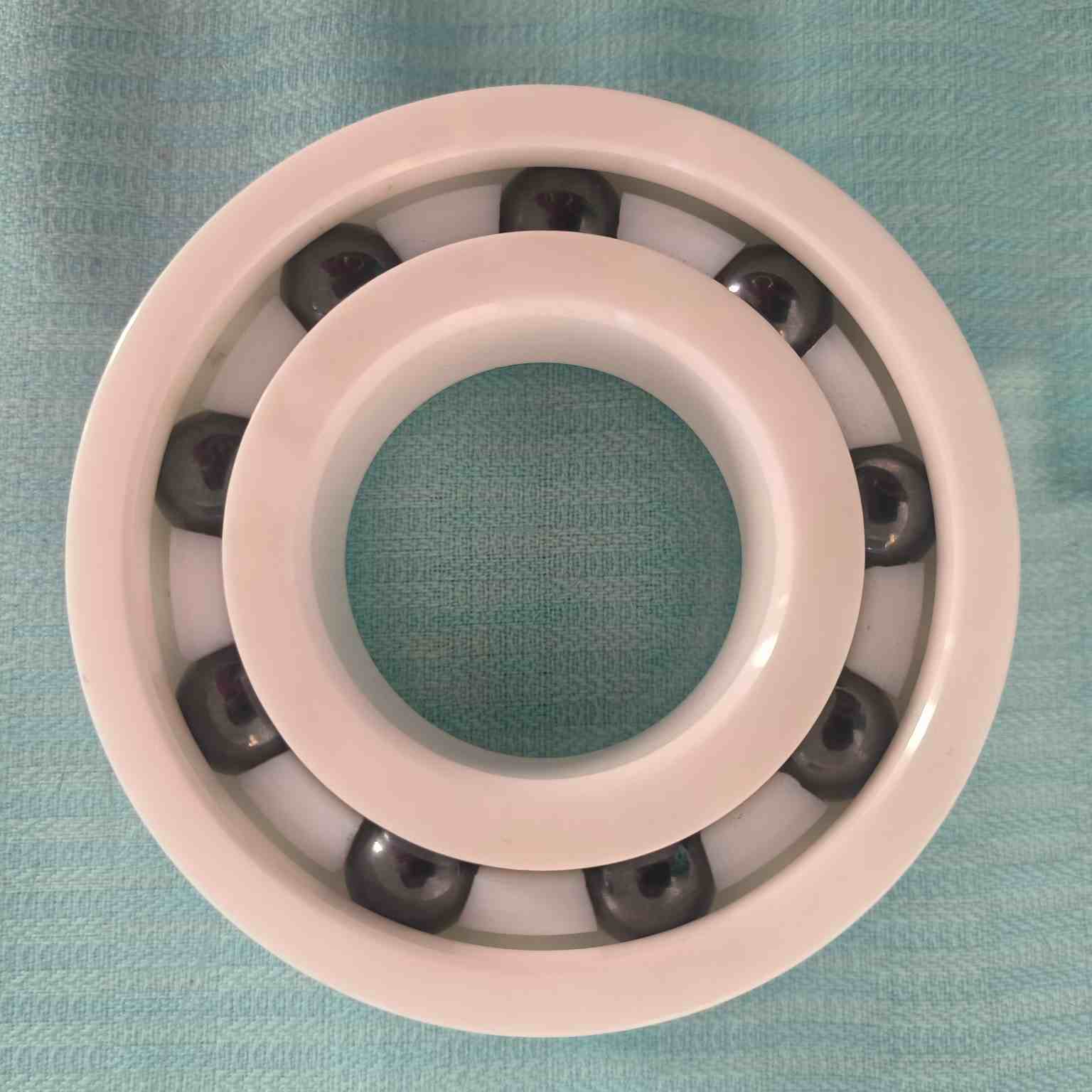

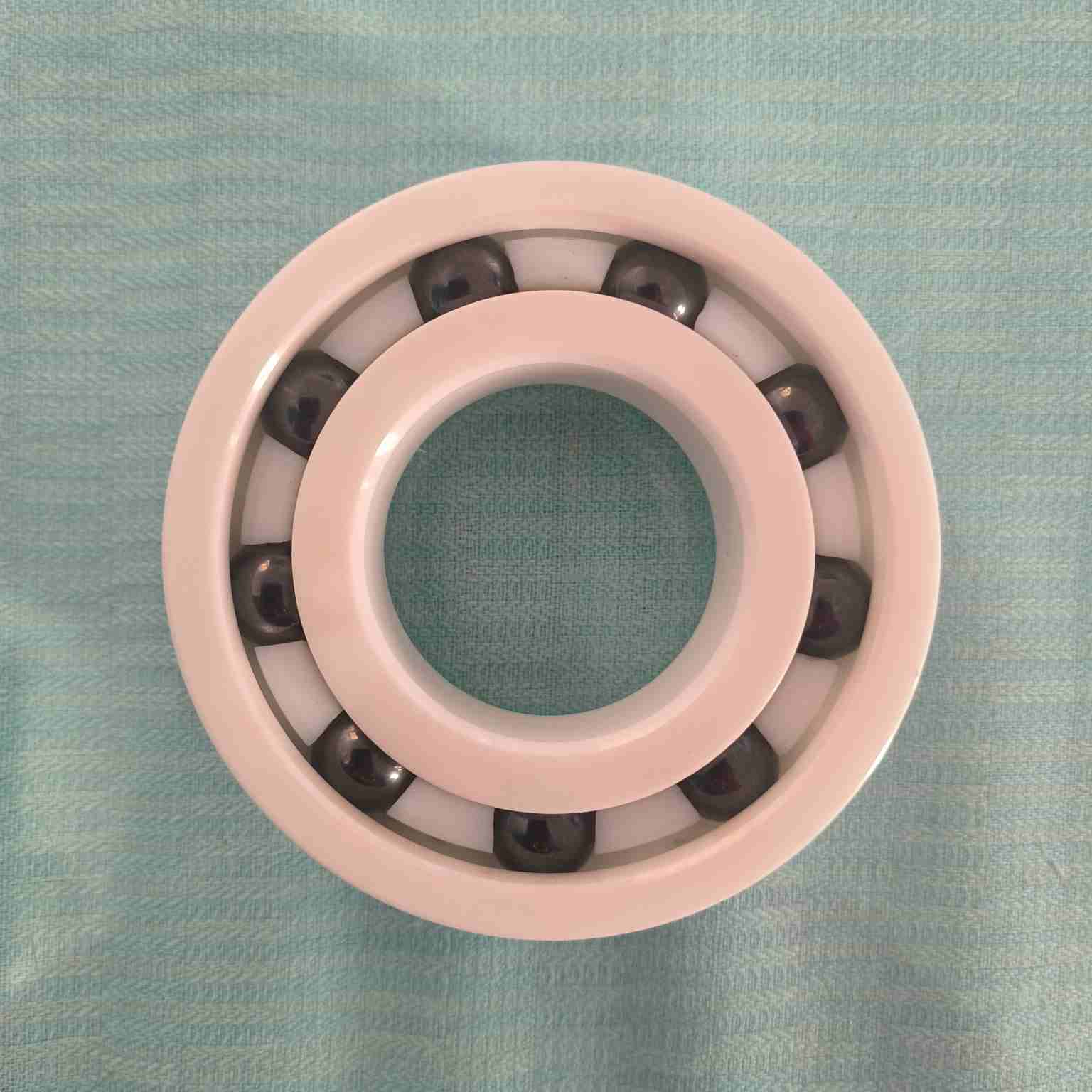

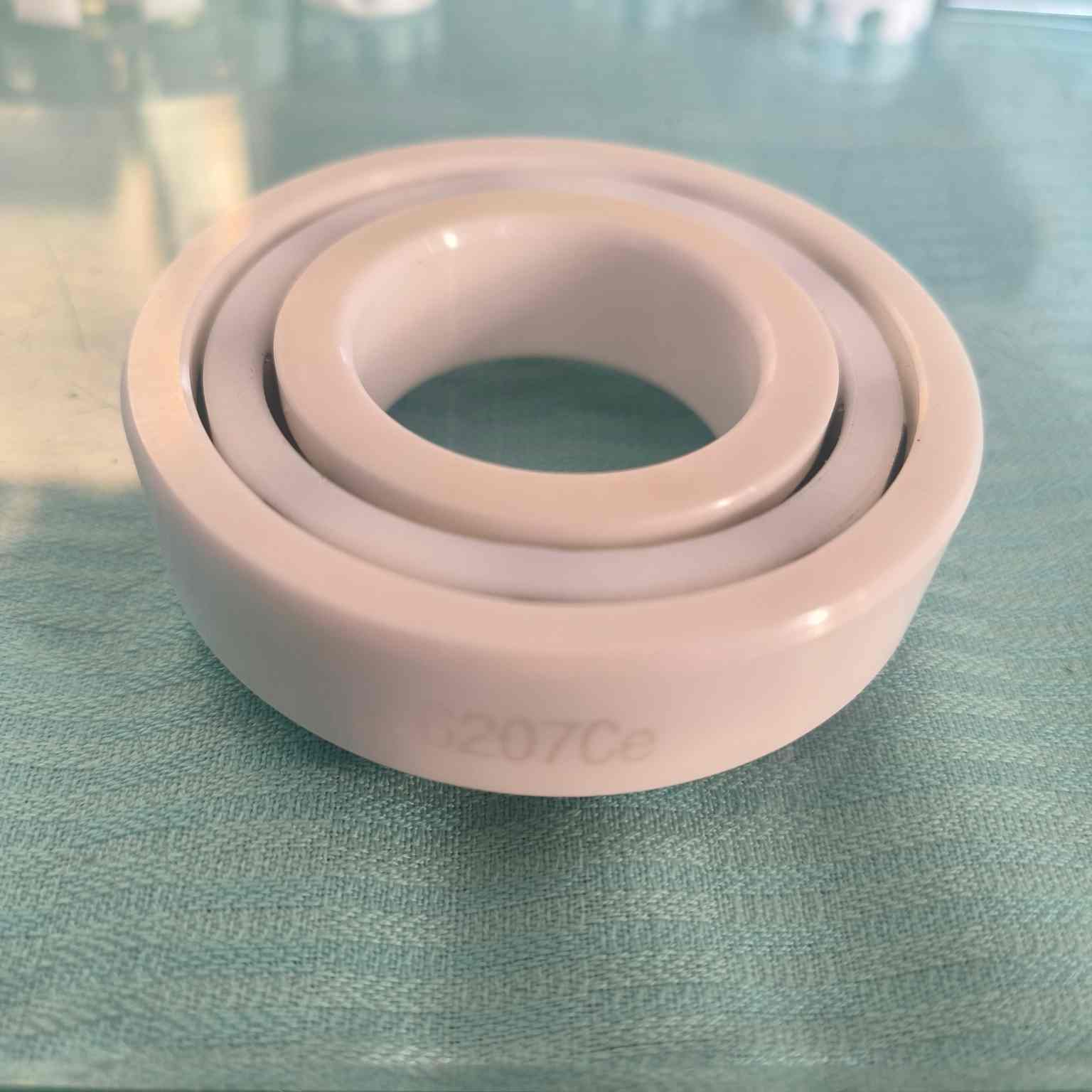

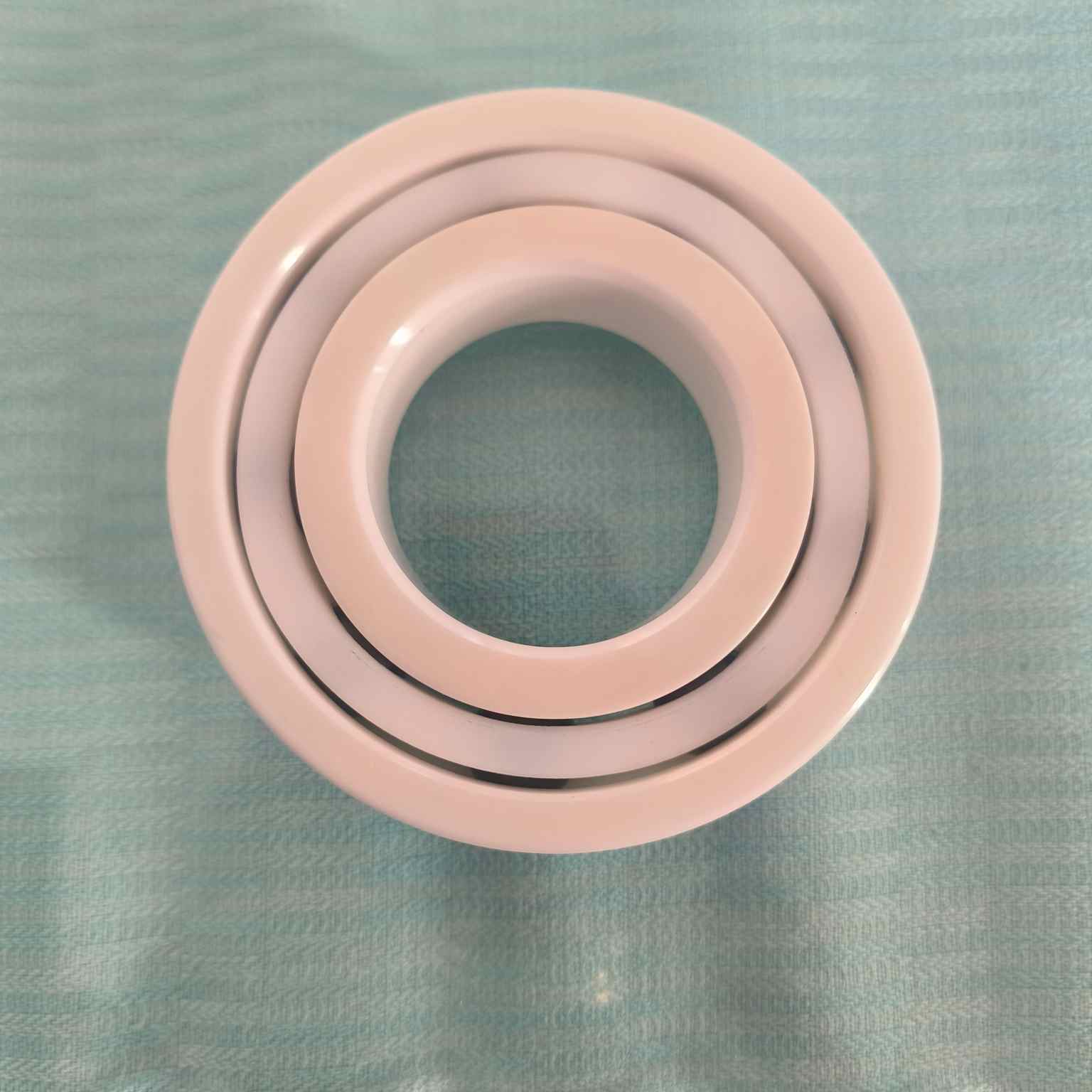

6207CE ZrO2 Ceramic Ball Bearing PTFE Cage 35x72x17mm
Product Description
6207 Ceramic Bearing Of ZrO2 Races And Si3N4 Balls+PTFE Cage With High Precision
Overview
The 6207 is a full-ceramic deep groove ball bearing with zirconia (ZrO₂) inner/outer rings and balls, paired with a PTFE cage. With P6-grade precision, it delivers exceptional performance in high-temperature, corrosive, and non-lubricated environments.
Key Features
1.Rings: Zirconia (ZrO₂)
- Excellent toughness and wear resistance.
- Outstanding corrosion resistance against acids and alkalis.
- Electrical insulator.
- Low density.
2.Balls: Silicon Nitride (Si₃N₄)
- High hardness and rigidity.
- Very low density for high-speed operation.
- Long fatigue life.
3.Cage: PTFE
- Superior dry-running and self-lubricating properties.
- Outstanding chemical resistance.
- Very low coefficient of friction.
Working Principle
- The combination of corrosion-proof Zirconia and inert Si₃N₄ balls provides excellent resistance to harsh chemicals and electrical insulation.
- The PTFE cage is the key differentiator. It offers the lowest friction among polymer cages, allowing for smoother operation under minimal or no lubrication. It is exceptionally resistant to a wider range of chemicals than PEEK.
Advantages
- Immune to acid/alkali corrosion, ideal for cleanrooms.
- Non-magnetic & electrically insulating.
- Self-lubricating (dry-running capability).
Specifications
| Parameter | Value |
|---|---|
| Model | 6207 |
| Dimensions | Ø35mm ×Ø72mm ×17mm |
| Speed limit | Grease 12,740 rpm / Oil 14,300 rpm |
Applications
- Corrosive Environments: Chemical pumps, marine equipment.
- Electrical Insulation: Variable Frequency Drive (VFD) motors, medical imaging (MRI) systems.
- High-Speed & High-Temperature: Machine tool spindles, turbomolecular pumps.
- Clean/Dry Running: Food & beverage machinery, semiconductor equipment, vacuum applications.
Why Choose Us
Professional team
Our company logo is ZXSQ and CSQ, and possesses eleven invention patents for utility models. The company now has a high-quality professional team consisting of dozens of members, to provide you with high-quality and perfect service, according to customer requirements to order a variety of bearing products.
Since the year of 1982 we have accumulated abundant experience in the production over the past more than 40 years, devoting ourselves whole-heartedly to the research and development of ceramic bearing material, our processing technique and improvement of our equipments.
Having undergone several evolution and transformation, our company has now become the leading enterprise in China domestic market in the fields of ceramic bearing and ceramic material products.
Strength factory
At present, we have a fully automatic grinding and assembling production line for ceramic bearings, with an annual output of 3 million sets of 608-2PS, 608-2RS and other specifications of P5 and P4 precision levels.
Firing equipment and technology leading in the industry. Our company has the most high-end equipment in the field of domestic industrial ceramics production, in addition to the hot isostatic sintering furnace (HIP) imported from ABB Sweden. Our company also has other production equipment, the product firing temperature has been raised to more than 2000℃.
FQA
Q: Who are we?
A: We are a factory in Beijing, China. We have been producing and selling ceramic bearings for more than 40 years. We have established friendly cooperative relations with many domestic and foreign companies.
Q: How can we guarantee quality?
A: We always produce samples before mass production, and produce in strict accordance with customer requirements and production regulations. After the completion of production, we will use inspection equipment to carry out precise inspection of products, and our packaging adopts the double insurance of foam and carton, to strictly ensure the quality of products.
Q: What can you buy from us?
A: Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, etc and all kinds of ceramic balls.
Q: Why should you buy from us not from other suppliers?
A: We are an industry and trade integrated company, we have three factories, with today's production and inspection equipment, can provide better delivery dates and product quality.
Q: What service can we provide?
A: We will provide high quality products and customized services, which can be fully customized according to user needs. We can provide samples for customer's confirmation.
Welcome your enquiry
We supply bearings, high quality products, if you need to buy or consult the price of bearings, please contact us. We are a set of bearing research and development, production, sales, service in one of the professional bearing company, providing bearing products and related technical services. We choose high quality raw materials, carefully do each set of bearings.
We adhere to customer demand as the guidance, and strive to provide customers with quality products and after-sales service, create value for customers, do customers partner. Welcome to discuss the cooperation!
