ZrO2 6003ce Ceramic Ball Bearing
| Lugar de origen | Pekín, China |
|---|---|
| Nombre de la marca | CSQ |
| Certificación | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Número de modelo | 6003 |
| Cantidad de orden mínima | 20-50 PCS |
| Precio | negotiable |
| Detalles de empaquetado | Forma+caja de cartón |
| Tiempo de entrega | 25-45 días del trabajo (de negociable) |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 2000pcs por meses |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Material | Cerámica, ZrO2 | Tipo de rodamiento | Rodamiento de bolas de cerámica |
|---|---|---|---|
| Percision | P6/ABEC3 a P4/ABEC7 | Característica | Vida duradera, precisión de poco ruido, alta |
| Aplicación | Bomba | Autorización | C0-C5 |
| Número de fila | Fila única | Estructura | ritmo profundo |
| Diámetro interior | 20 mm | Diámetro | 47 mm |
| Resaltar | 20mm Inner Diameter Ceramic Ball Bearing,47mm Outer Diameter ZrO2 Bearing,P6/ABEC3 to P4/ABEC7 Precision Ceramic Bearing |
||
Descripción de producto

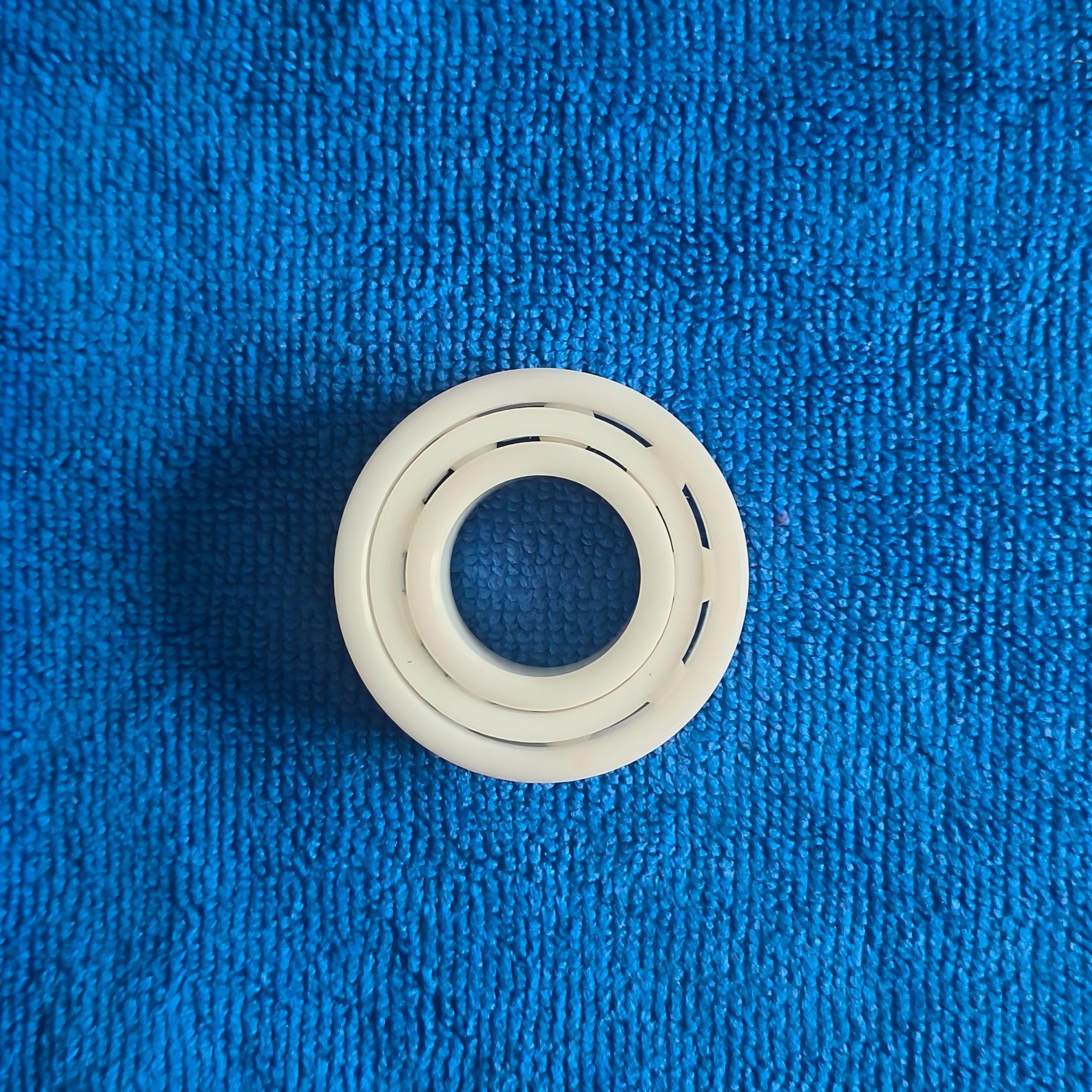

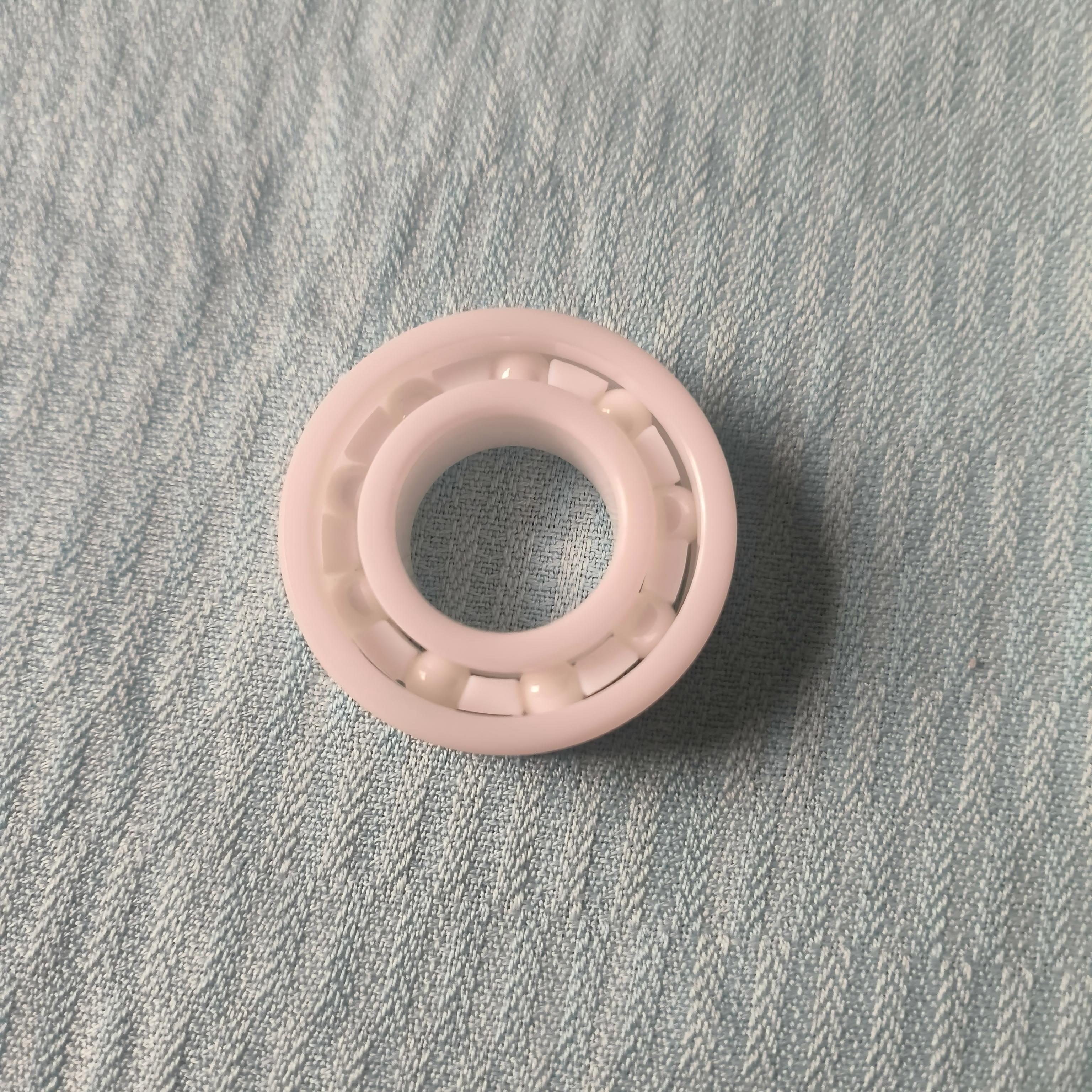

ZrO2 6003ce Ceramic Ball Bearing
Product Specifications
| Attribute | Value |
|---|---|
| Material | Ceramic, ZrO2 |
| Bearing Type | Ceramic Ball Bearing |
| Precision | P6/ABEC3 to P4/ABEC7 |
| Characteristic | Long-lasting life, Low noise, High precision |
| Application | Pump |
| Clearance | C0-C5 |
| Number of Row | Single row |
| Structure | Deep groove |
| Inner Diameter | 20mm |
| Out Diameter | 47mm |
Full Ceramic Ball Bearings with P6/ABEC3-P4/ABEC7 Precision
Our ceramic bearings feature high temperature resistance, cold resistance, wear resistance, corrosion resistance, magnetic electrical insulation resistance, oilless self-lubrication, and high speed capabilities. These hi-tech products are designed for extreme environments and special conditions.
Material Composition
The rings and rollers are made from full ceramic materials including zirconia (ZrO2), silicon nitride (Si₃N₄), silicon carbide (SiC), and aluminum oxide (Al₂O₃). Cages are constructed from advanced materials like PTFE, PEEK, UPE, PVDF, PA66, SUS304, and SUS316.
Key Advantages
- High Temperature Resistance: Operates up to 220°C compared to standard bearings at 160°C
- High Speed Capability: 1.5 times faster than conventional bearings due to low friction coefficient
- Extended Lifespan: 2-3 times longer service life than standard bearings
- Electrical Insulation: Ceramic balls prevent electrical conductivity between inner and outer rings
Technical Parameters
| Parameter | Description |
|---|---|
| Material | Ceramic: SSIC, Si3N4, ZrO2 |
| Corrosion resistance | Excellent |
| Friction | Lower than steel |
| Wear resistance | Excellent |
| Temperature resistance | High |
| Strength | Higher than steel |
| Durability | Excellent |
| Weight | Lighter than steel |
| Precision | High |
| Biocompatibility | Some ceramic materials are biocompatible |
Applications
Ideal for extreme environments in:
- Aviation and aerospace
- Marine and petroleum industries
- Chemical processing and automotive
- Electronics and power generation
- Medical equipment and research
Our Manufacturing Advantages
Professional Team
With 40+ years of experience since 1982, we hold eleven invention patents and maintain a dedicated R&D team focused on ceramic bearing technology. Our company has evolved into a market leader in ceramic bearing production.
Advanced Production
Our fully automated grinding and assembly line produces 3 million sets annually, including P5 and P4 precision bearings. We utilize industry-leading equipment including a hot isostatic sintering furnace (HIP) from ABB Sweden, capable of reaching 2000°C.
Material Mastery
We control raw material production to ensure consistent quality and pricing stability, unaffected by international market fluctuations. Our vertical integration allows complete control from raw materials to finished products.
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of ceramic bearing production experience, serving domestic and international clients.
How do we guarantee quality?
We implement strict production protocols, precise inspection processes, and double-layer protective packaging to ensure product integrity.
What products do we offer?
Our range includes ceramic deep groove ball bearings, angular contact bearings, hybrid bearings, linear bearings, and ceramic balls.
Why choose us?
As an integrated manufacturer with three factories, we offer superior quality control, faster delivery, and competitive pricing.
What services do we provide?
We offer custom solutions, product samples, technical consultation, and comprehensive after-sales support.
We welcome your inquiries about our high-quality ceramic bearings. As a professional manufacturer with complete R&D, production, and service capabilities, we are committed to providing superior products and technical support. Contact us today to discuss your requirements.
