High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps

  • High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps
  • High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps
  • High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps
Lugar de origen PORCELANA
Nombre de la marca CSQ
Certificación FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Número de modelo productos personalizados
Cantidad de orden mínima 20-50 PCS
Precio negotiable
Detalles de empaquetado Forma+caja de cartón
Tiempo de entrega 20-45 días de trabajo
Condiciones de pago T/T
Capacidad de la fuente 2000pcs por mes

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre Robado de manga deslizante de cerámica personalizada Categoría Cojinete corredizo de cerámica
Material Carburo de silicio Tamaño Personalizado, según los dibujos
Aplicación Zapatillas Paquete Forma+caja de cartón
Calidad Alta precisión, larga vida, OEM Serive Especificación Tamaño estándar y personalizado
Resaltar

Long Life Silicon Carbide Sliding Bearing

,

High Precision Ceramic Sliding Bearing Sleeve

,

Low Thermal Expansion SiC Sliding Bearing
Deja un mensaje
Descripción de producto
Silicon Carbide Ceramic Sliding Bearing Sleeve
High-Performance Ceramic Components for Extreme Conditions
Silicon Carbide (SiC) sleeves are engineered for demanding applications, offering exceptional wear resistance, corrosion resistance, high hardness, and thermal stability. Ideal for bearings, seals, and transmission systems in harsh environments across industries including chemical processing, machinery, semiconductors, and energy.
Key Features
  • Superior Hardness & Wear Resistance: Mohs hardness of 9.5 (second only to diamond) ensures extended service life
  • Excellent Corrosion Resistance: Withstands strong acids, alkalis, and organic solvents for chemical equipment applications
  • High-Temperature Stability: Maintains performance up to 1400°C without oxidation or deformation
  • Low Thermal Expansion: High thermal conductivity and thermal shock resistance for rapid temperature cycling
  • Self-Lubricating: Low friction coefficient reduces energy consumption and maintenance requirements
Applications
  • Chemical Industry: Pumps, valves, reactor seals
  • Machinery: High-speed bearings, precision components
  • Semiconductors: Wafer handling fixtures
  • New Energy: Photovoltaic and lithium battery production equipment
Technical Properties
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

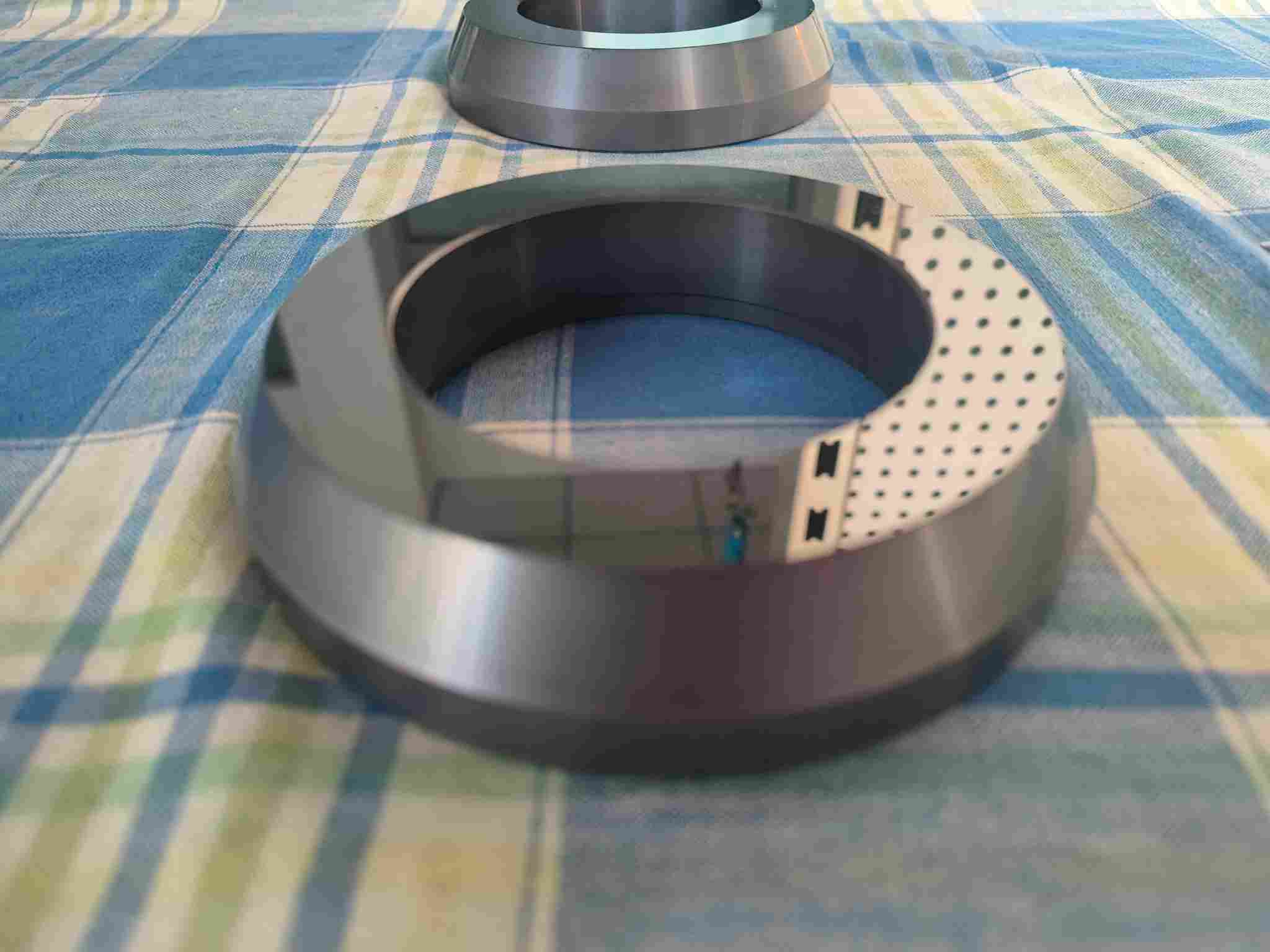

High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps 0
Advantages vs. Steel Bearings
  • Higher Temperature Resistance: Maintains superior mechanical stability at elevated temperatures
  • Superior Performance in Thermal Cycling: Minimal clearance changes under temperature fluctuations
  • Enhanced Anti-Seizure Properties: Reduced thermal deformation minimizes friction-induced binding
  • Oil-Free Operation: Self-lubricating properties enable reliable performance in high-vacuum environments
  • Exceptional Corrosion Resistance: Impervious to acids, alkalis, and salts
  • Electrical Insulation: Non-conductive, eliminating static discharge
  • Non-Magnetic: Prevents magnetic particle adhesion in sensitive environments

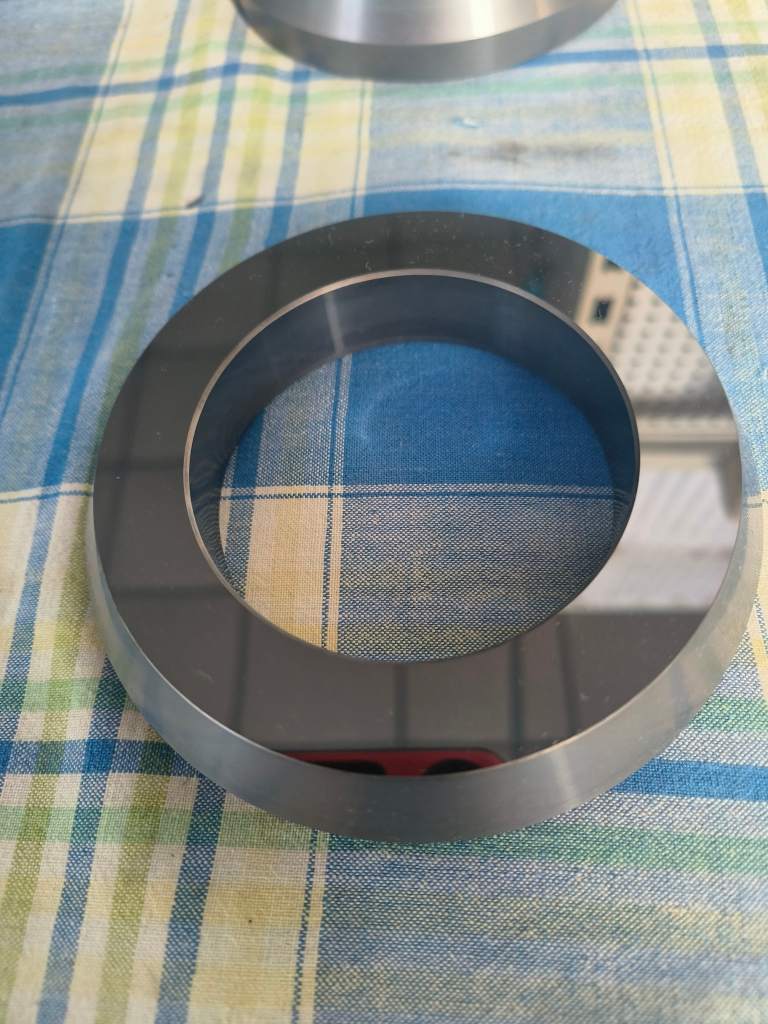

High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps 1
Manufacturing Excellence
With three factories in China equipped with advanced pressing, sintering and processing machines, we meet diverse customer needs under the ZXSQ and CSQ brands. Our company holds eleven invention patents and maintains a professional team dedicated to ceramic bearing solutions.
Since 1982, we've accumulated over 40 years of ceramic bearing production experience, continuously improving materials, processing techniques, and equipment. We're now a market leader in China for ceramic bearings and material products.
We specialize in producing both external and internal gear pump sliding bearings in silicon carbide material, including supplying SSiC sliding bearings to Germany's Witte for many years.

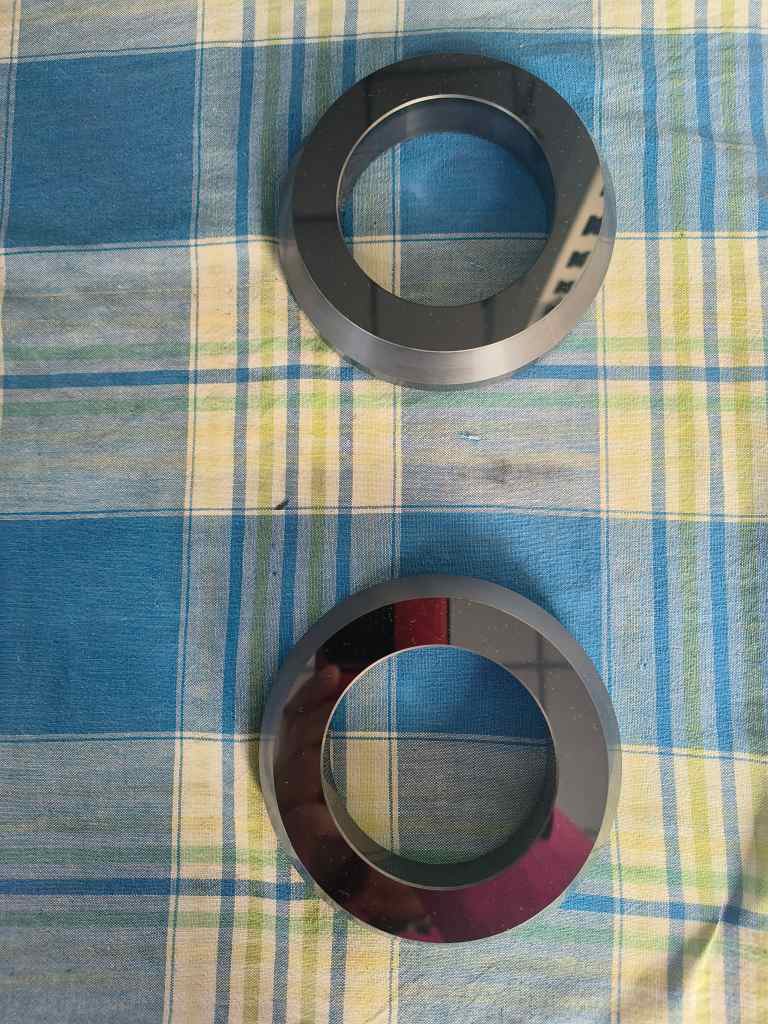

High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps 2 High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps 3 High Precision Silicon Carbide Sliding Bearing Sleeve for Pumps 4
Our Competitive Advantages
  • Free sample bearings available
  • ISO Standard compliant production
  • In-stock bearings ready for immediate shipment
  • Small order quantities accepted
  • Comprehensive OEM bearing services
  • Customized bearings based on your drawings or samples
  • Competitive factory-direct pricing
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, having established cooperative relationships with many domestic and international companies.
How do we guarantee quality?
We produce samples before mass production and strictly follow customer requirements. Our quality control includes precise inspection using specialized equipment, with foam and carton packaging for double protection.
What products do we offer?
We provide ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic ball bearings, linear bearings, and various ceramic balls.
Why choose us over other suppliers?
As an integrated company with three factories and modern production equipment, we offer better delivery times and product quality at competitive prices.
What services do we provide?
We offer high-quality products, full customization, and sample confirmation services to meet your specific requirements.
Partner With Us
We maintain strong relationships with raw material suppliers to ensure consistent quality and stable pricing. When necessary, we can produce raw materials ourselves. Customer satisfaction is our priority - we strive to provide excellent products and after-sales service, creating value as your trusted partner. Contact us today to discuss potential cooperation!
