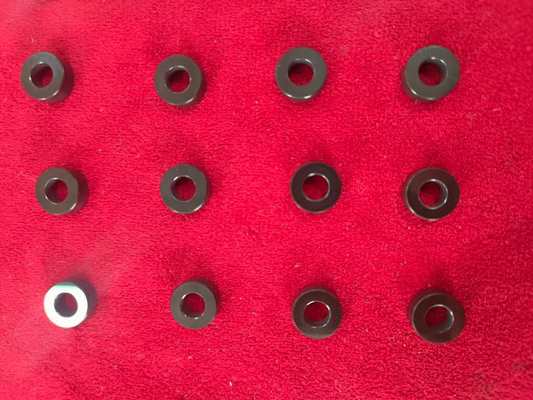

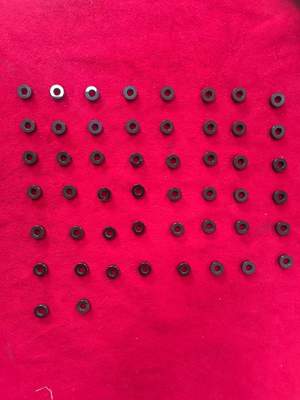

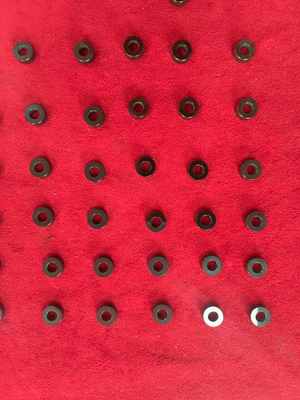

SiC Sliding Bearing with Pressureless Sintered Silicon Carbide
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | CSQ |
| Certificación | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Número de modelo | productos personalizados |
| Cantidad de orden mínima | 20-50 PCS |
| Precio | negotiable |
| Detalles de empaquetado | Forma+caja de cartón |
| Tiempo de entrega | 20-45 días de trabajo |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 2000pcs por mes |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | Robado de manga deslizante de cerámica personalizada | Categoría | Cojinete corredizo de cerámica |
|---|---|---|---|
| Material | Pressureless sinterizó el carburo de silicio | Solicitud | Zapatillas |
| Tamaño | Personalizado, según los dibujos | Calidad | Alta precisión, larga vida, OEM Serive |
| Paquete | Forma+caja de cartón | Especificación | Tamaño estándar y personalizado |
| Resaltar | Pressureless Sintered Silicon Carbide Sliding Bearing,OEM Service SiC Sliding Bearing,Low Thermal Expansion Ceramic Sliding Bearing |
||
Descripción de producto
Customized SiC Sliding Bearing for Pumps
Product Description
Our customized Silicon Carbide (SiC) sliding bearings represent cutting-edge tribological solutions designed for demanding industrial applications. These high-performance components utilize engineered ceramics to deliver significant operational advantages over conventional metallic bearings.
Key Features
- Exceptional corrosion resistance for use in aggressive chemical environments
- Superior tribological characteristics with ultra-smooth, hard bearing surfaces
- Excellent thermal performance maintaining structural integrity at high temperatures
- Low friction coefficient and minimal wear rates for extended service life
Applications
Our ceramic sliding bearings are extensively used across multiple industries:
- Transportation: Aviation, marine, and automotive systems
- Industrial: Chemical processing, power generation, pump systems
- Advanced Technology: Medical equipment, scientific instruments, defense systems
Material Properties
| Property | Value |
|---|---|
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Resistant to acid and alkali corrosion (including hydrofluoric acid) |
Advantages Over Steel Bearings
- Superior high-temperature performance with stable mechanical properties
- Better performance in temperature fluctuation environments
- Enhanced anti-bite and anti-stuck characteristics
- Capable of operating without lubrication in vacuum conditions
- Excellent resistance to chemical corrosion
- Electrical insulation properties with no static electricity
- Non-magnetic for use in magnetic environments
Our Manufacturing Capabilities
With three factories in China and over 40 years of experience, we possess advanced pressing, sintering, and processing equipment to meet diverse customer requirements. Our company holds eleven invention patents and maintains a professional team dedicated to quality and innovation.
Our Advantages
- Free sample bearings available
- ISO standard compliant production
- Inventory available for immediate shipment
- Small order quantities accepted
- Full OEM and customization services
- Competitive factory-direct pricing
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China with over 40 years of experience in ceramic bearing production, serving domestic and international clients.
Q: How do we guarantee quality?
A: We implement strict quality control including pre-production samples, precise inspections, and secure packaging to ensure product integrity.
Q: What products do we offer?
A: Our product range includes various ceramic bearings (deep groove, angular contact, hybrid) and ceramic balls, all customizable to specifications.
Q: Why choose us over other suppliers?
A: As an integrated manufacturer with modern facilities, we offer better delivery times, quality control, and pricing than typical suppliers.
Q: What services do we provide?
A: We offer full customization, samples for approval, and comprehensive after-sales support to meet your specific requirements.
Welcome Your Enquiry
We maintain strategic partnerships with raw material suppliers to ensure consistent quality and stable pricing. Our customer-focused approach and technical expertise enable us to provide optimal bearing solutions for your applications. Contact us today to discuss your requirements.
