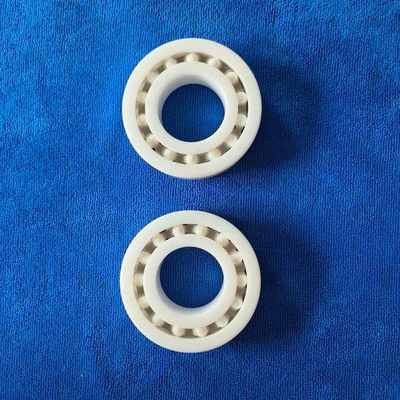

1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump

  • 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump
  • 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump
  • 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump
  • 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump
  • 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump
Lugar de origen Beijing, China
Nombre de la marca CSQ
Certificación FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Número de modelo 1207
Cantidad de orden mínima 20-50 PCS
Precio negotiable
Detalles de empaquetado Forma+caja de cartón
Tiempo de entrega 25-45 días del trabajo (de negociable)
Condiciones de pago T/T
Capacidad de la fuente 2000pcs por meses

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material De cerámica, SSIC, SI3N4, Zr02, híbrido Jaula PFA, PCTFE, PTFE, PEEK, nylon
Percision P6/ABEC3 a P4/ABEC7 característica Vida duradera, precisión de poco ruido, alta
Solicitud Monopatín, patín de ruedas, bomba de agua Autorización C0-C5
Número de fila Fila doble Estructura Auto-alineación
Resaltar

ZrO2 ceramic ball bearings with PFA cage

,

ceramic ball bearings for water pump

,

1207 ceramic ball bearings with warranty
Deja un mensaje
Descripción de producto
1207 ZrO2 Ceramic Ball Bearings with PFA Cage for Water Pumps
1200 Series ZrO2 Ceramic Ball Bearings +PFA Cage with P6/ABEC3-P4/ABEC7 Precision

Zirconia ceramic bearings feature high temperature resistance, low cold resistance, high pressure tolerance, corrosion resistance, acid/alkali resistance, magnetoelectric insulation, and oil-free self-lubrication. These properties make them ideal for special environments unsuitable for mixed ceramic ball bearings or steel bearings.

Key Advantages of Ceramic Ball Bearings
  • High Temperature Resistance: Withstands temperatures up to 220°C (compared to 160°C for standard bearings) due to low thermal expansion coefficient.
  • High Speed Capability: Operates at speeds 1.5x higher than standard bearings thanks to low friction coefficient and self-lubrication.
  • Extended Service Life: Lasts 2-3 times longer than conventional bearings, even without lubrication.
  • Electrical Insulation: Ceramic balls prevent electrical conductivity between inner and outer rings, making them ideal for electrically conductive environments.
Technical Specifications
Parameter Description
Material Ceramic: SSIC, Si3N4, ZrO2
Corrosion Resistance Excellent
Friction Lower than steel
Wear Resistance Excellent
Temperature Resistance High
Strength Higher than steel
Durability Excellent
Weight Lighter than steel
Precision High
Biocompatibility Some ceramic materials are biocompatible
Product Images
(Contact us for high-resolution images and detailed specifications)

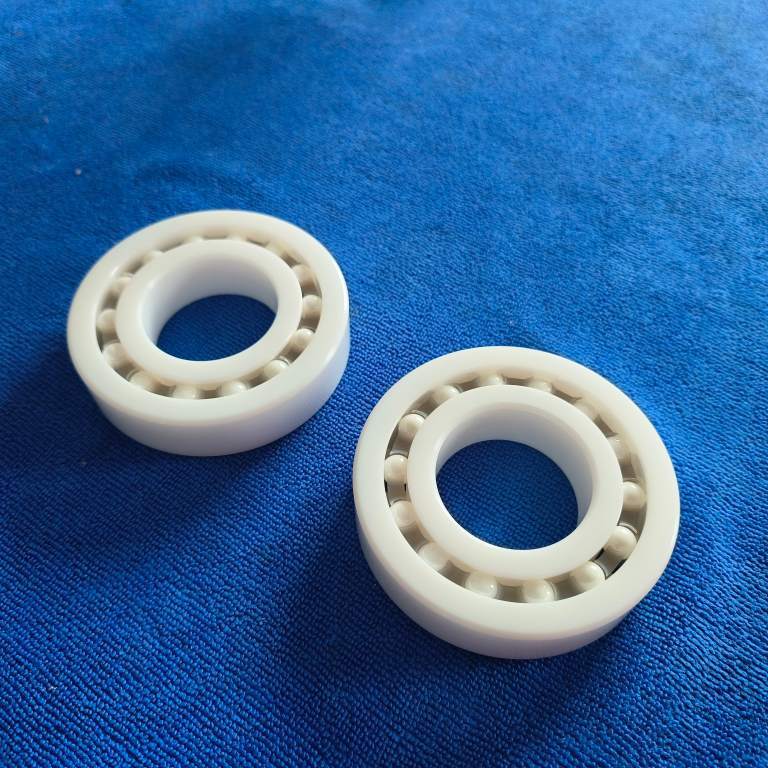

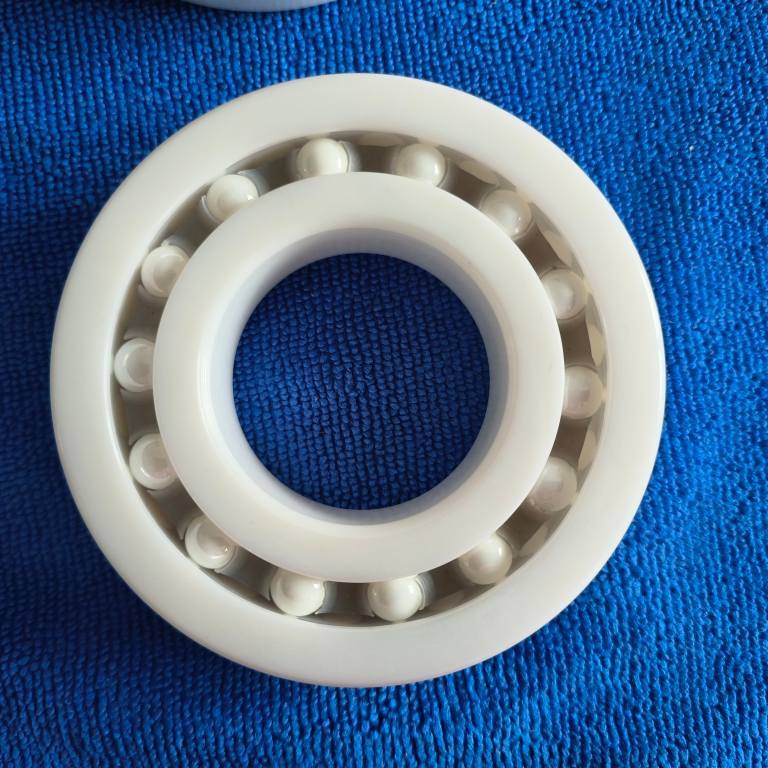

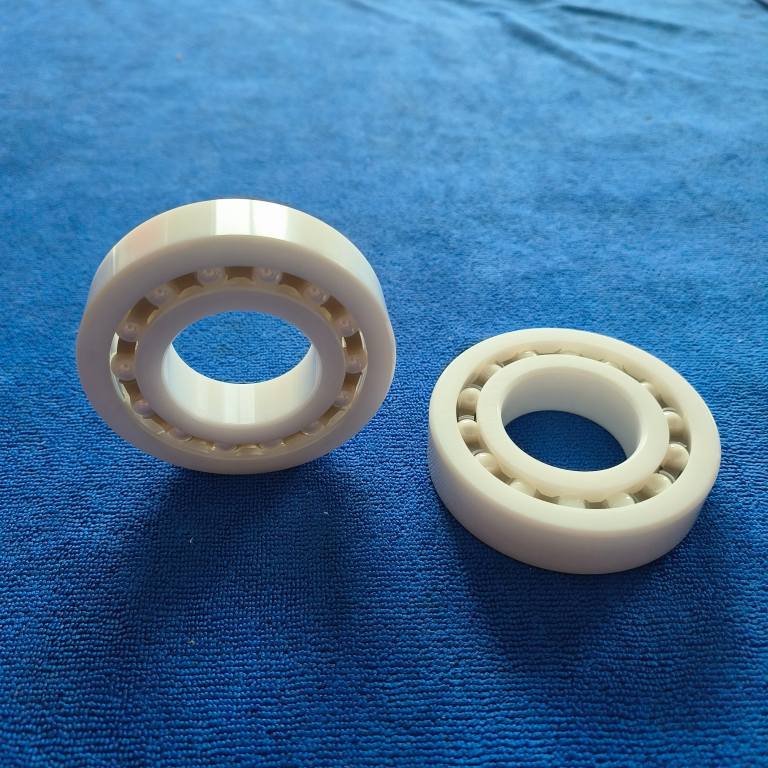

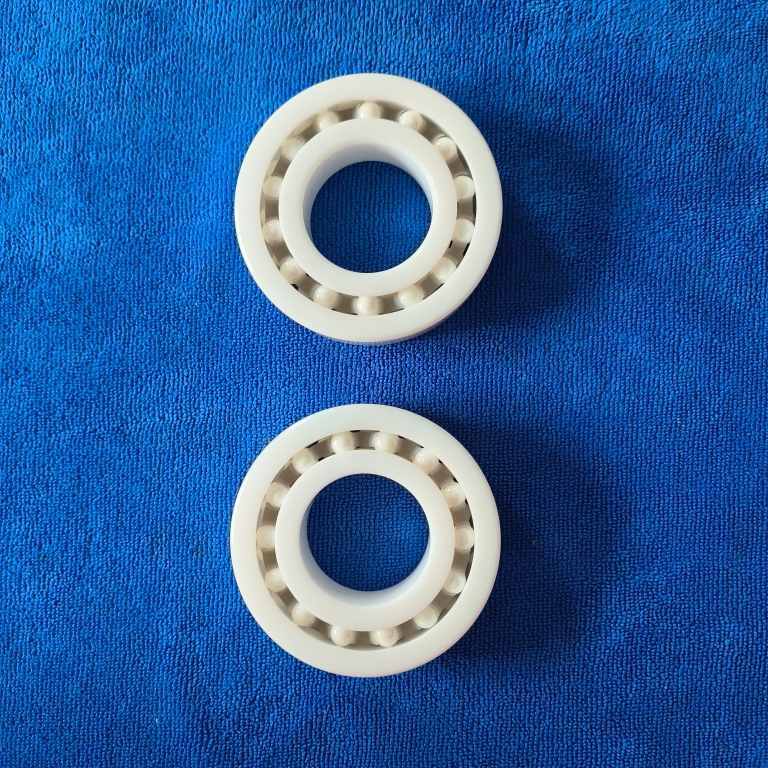

1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump 0 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump 1 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump 2 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump 3
Ceramic vs Steel Ball Bearings Comparison
  • Friction: Ceramic balls are rounder, lighter, harder, and smoother, reducing friction by up to 40% compared to steel.
  • Corrosion Resistance: Ceramic bearings last up to 10x longer in corrosive environments.
  • Electrical Properties: Non-conductive and non-magnetic, ideal for variable frequency drive applications.
  • Thermal Stability: Minimal thermal expansion maintains precision across temperature variations.
  • Density: 60% lighter than steel reduces centrifugal forces at high speeds.
Our Manufacturing Capabilities

With over 40 years of experience in ceramic bearing production, we maintain:

  • Fully automated grinding and assembly lines producing 3 million sets annually
  • Advanced hot isostatic sintering furnaces (HIP) from ABB Sweden
  • Production capabilities up to 2000°C firing temperatures
  • Precision manufacturing for P4 and P5 grade bearings
1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump 4 1207 ZrO2 Ceramic Ball Bearings with PFA Cage used for water pump 5
Frequently Asked Questions
Q: How do you ensure product quality?
A: We conduct sample production before mass manufacturing, followed by precise inspection using advanced equipment. Our double-layer packaging (foam + carton) ensures safe delivery.
Q: What products do you offer?
A: Our range includes ceramic deep groove ball bearings, angular contact bearings, hybrid ceramic bearings, linear bearings, and custom ceramic balls.
Q: Why choose your company?
A: We combine three production facilities with modern equipment to ensure superior quality and delivery times, backed by 40+ years of ceramic bearing expertise.
Contact Us for Custom Solutions

We specialize in research, development, and production of high-performance ceramic bearings. Our team provides:

  • Custom bearing solutions tailored to your requirements
  • Sample products for evaluation
  • Technical consultation and after-sales support
  • Competitive pricing for bulk orders

Partner with us for reliable ceramic bearing solutions that enhance your equipment performance and longevity.
