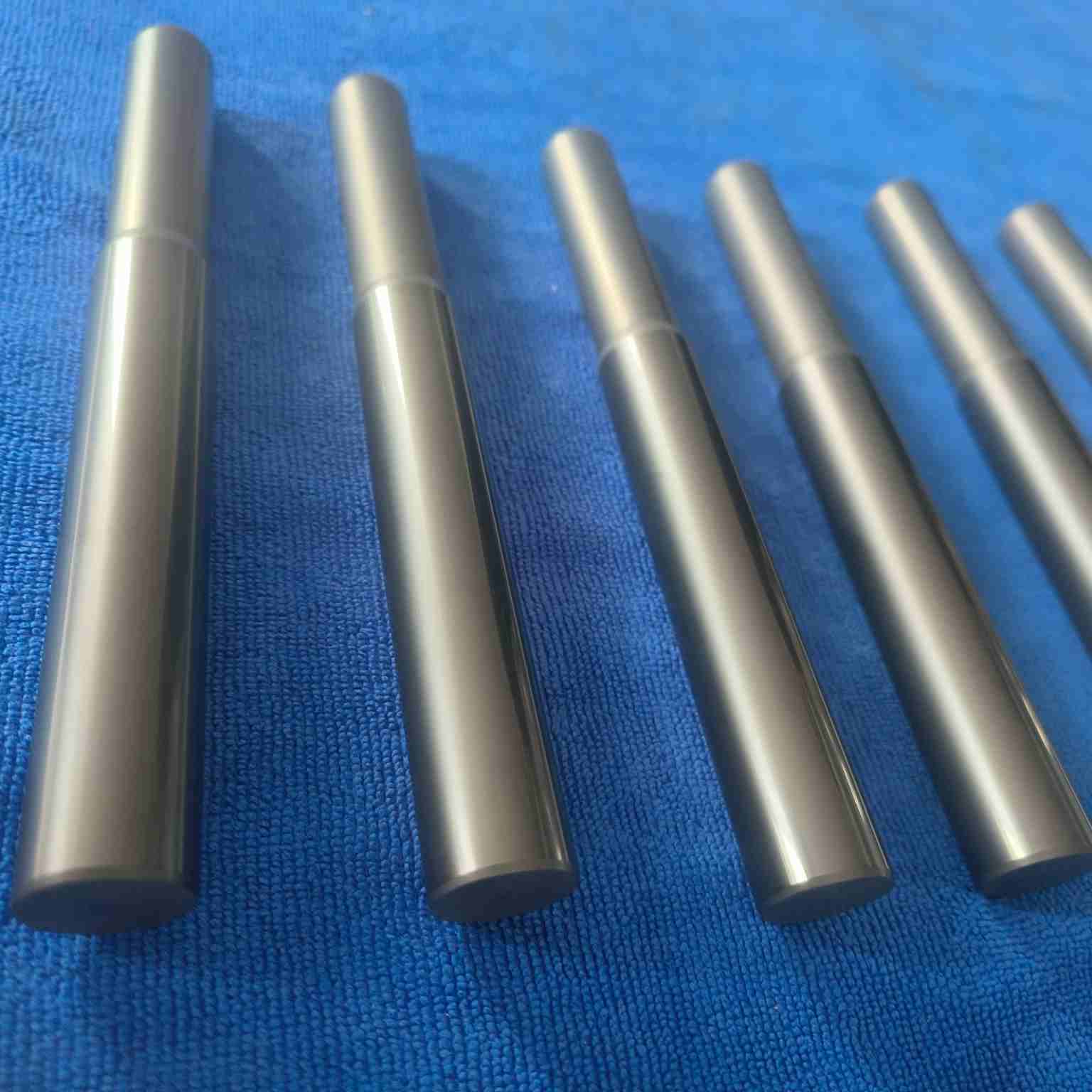

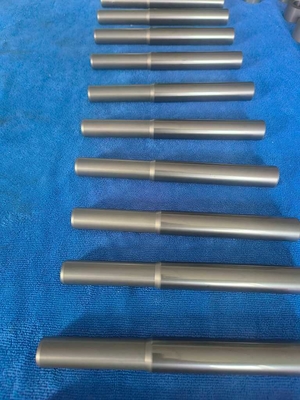

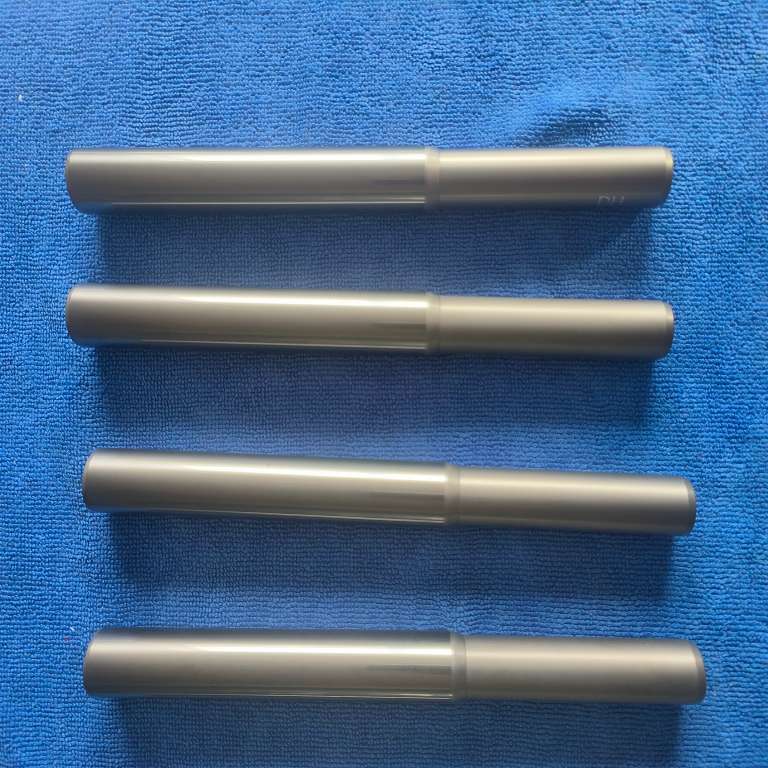

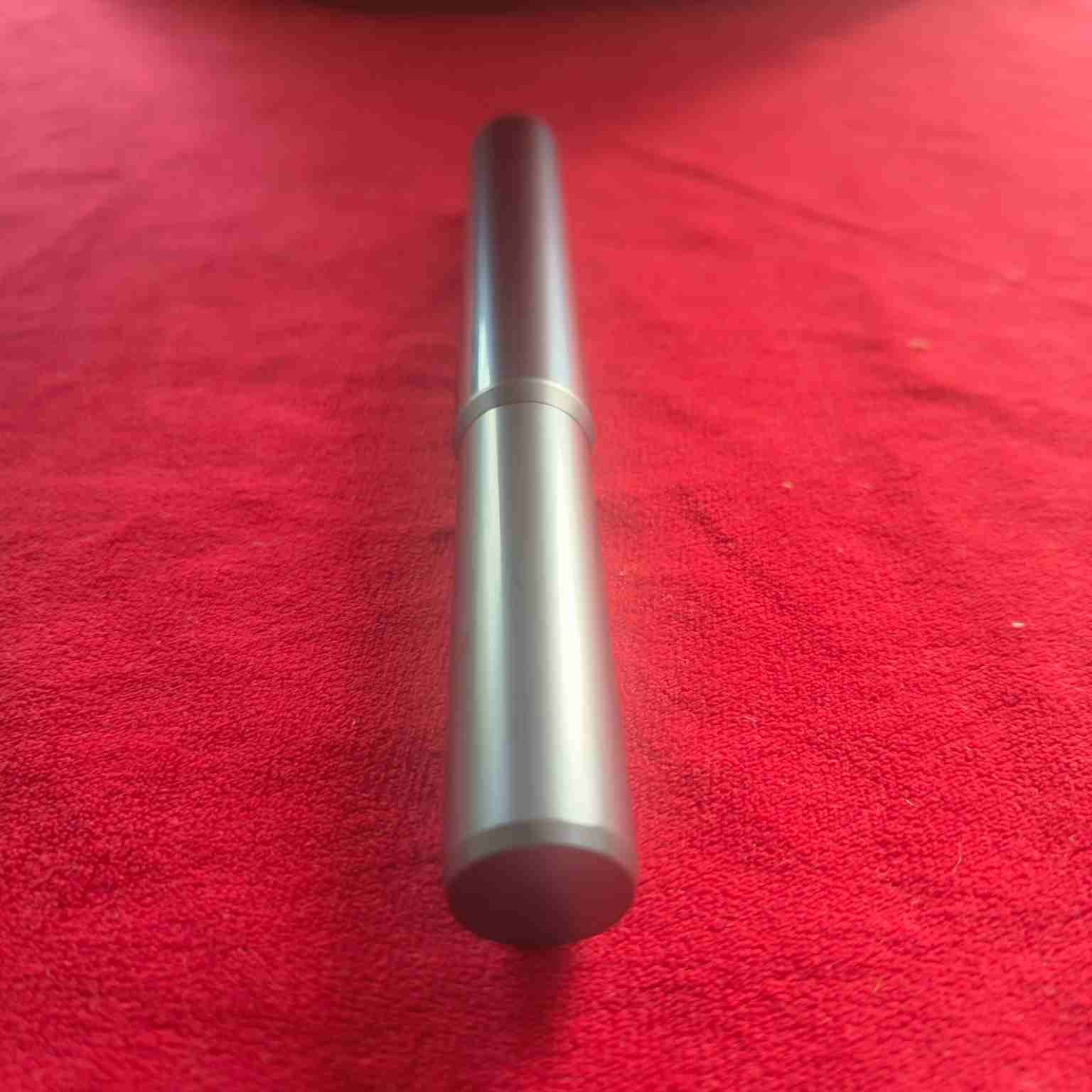

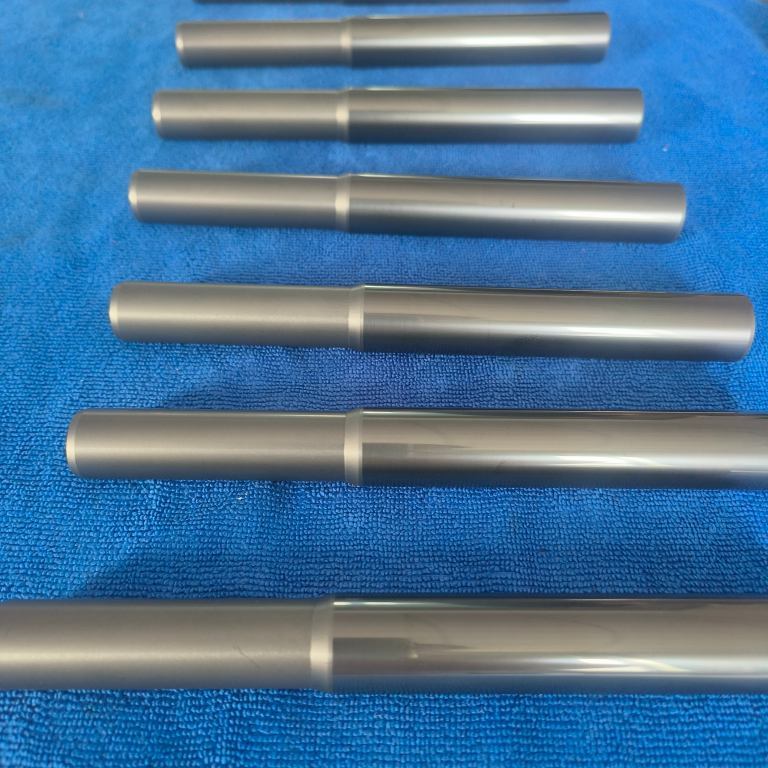

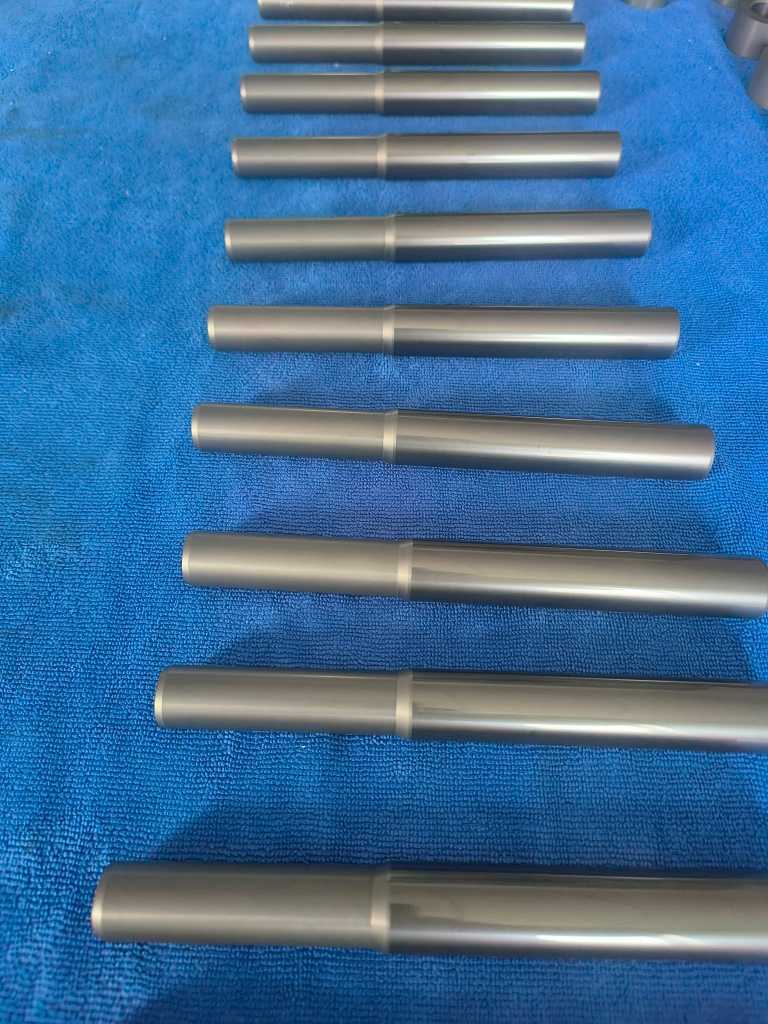

Custom Silicon Carbide Ceramic Shaft Hardness for Pumps

  • Custom Silicon Carbide Ceramic Shaft Hardness for Pumps
  • Custom Silicon Carbide Ceramic Shaft Hardness for Pumps
  • Custom Silicon Carbide Ceramic Shaft Hardness for Pumps
  • Custom Silicon Carbide Ceramic Shaft Hardness for Pumps
  • Custom Silicon Carbide Ceramic Shaft Hardness for Pumps
  • Custom Silicon Carbide Ceramic Shaft Hardness for Pumps
Lugar de origen China.
Nombre de la marca CSQ
Certificación FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Número de modelo Personalizado
Cantidad de orden mínima 20-50 PCS
Precio negotiable
Detalles de empaquetado Forma+Cartom Box
Tiempo de entrega 20-45 días de trabajo
Condiciones de pago T/t, t/t
Capacidad de la fuente 2000 PC por mes

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre Eje de cerámica categoría Cerámica estructural avanzada
Material Cerámica SSIC SI3N4 AL2O3 ZRO2 Precisión Personalizado, según los dibujos
Tamaño Personalizado Mechón Forma+Cartom Box
Resaltar

custom silicon carbide ceramic shaft

,

ceramic shaft for pumps

,

high hardness ceramic shaft
Deja un mensaje
Descripción de producto
Silicon Carbide Zirconia Ceramic Shaft - Corrosion Resistance for Pool Pump
Customized Ceramic Shaft of Silicon Carbide/Zirconia with High Precision
Our ceramic shafts are engineered for exceptional performance in demanding industrial applications, offering superior corrosion resistance and durability.
Silicon Carbide Shaft
  • Manufactured from highly purified, sub-micron silicon carbide material
  • Air pressure sintered for optimal density and strength
  • High hardness (Hv2800) with excellent wear resistance
  • Resistant to strong acids, alkalis, and salt corrosion
  • High temperature tolerance for extreme operating conditions
  • Ideal for petroleum, chemical, semiconductor, food machinery, and pharmaceutical industries
Zirconium Oxide Shaft
  • Density and linear expansion coefficient similar to metal steel shafts
  • High hardness (Hv1300) with superior wear resistance
  • Resistant to strong acids, alkalis, and salt corrosion (excluding hydrofluoric acid)
  • Non-magnetic and non-conductive properties
  • High temperature resistance with excellent impact resistance
  • Low starting torque and resistance to dry friction
Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Key Properties of Zirconia
Max Temperature Up to 380℃
Density 6.09 g/cm³
Fracture Toughness 8-11 MPa-m1/2
Hardness 1300 HV5
Electrical Properties Excellent insulation
Chemical Stability Resistant to acid and alkali corrosion

Custom Silicon Carbide Ceramic Shaft Hardness for Pumps 0
Custom Silicon Carbide Ceramic Shaft Hardness for Pumps 1
Ceramic vs Steel Material Comparison
  • Higher temperature tolerance: Ceramic maintains mechanical properties at elevated temperatures
  • Better performance with temperature fluctuations: Smaller thermal expansion coefficient reduces clearance changes
  • Improved anti-bite and anti-stuck performance: Reduced thermal deformation enhances operational reliability
  • Oil-free operation possible: Self-lubricating characteristics enable use in vacuum and dry environments
  • Superior corrosion resistance: Withstands acid, alkali, and salt exposure
  • Electrical insulation: Non-conductive with no static electricity generation
  • Magnetic environment compatibility: Non-magnetic properties prevent abrasive particle adhesion
Why Choose Our Ceramic Shafts
Professional Team
With the company logos ZXSQ and CSQ, we hold eleven invention patents for utility models. Our high-quality professional team provides customized bearing solutions tailored to your requirements.
Since 1982, we've accumulated over 40 years of experience in ceramic bearing material research and development, continuously improving our processing techniques and equipment.
Through continuous evolution, we've become a leading enterprise in China's ceramic bearing and ceramic material products market.
Manufacturing Strength
  • Fully automated grinding and assembling production line
  • Annual output of 3 million sets in various specifications and precision levels
  • Industry-leading firing equipment and technology
  • High-end industrial ceramics production equipment including HIP furnace from ABB Sweden
  • Product firing temperatures exceeding 2000℃
Custom Silicon Carbide Ceramic Shaft Hardness for Pumps 2 Custom Silicon Carbide Ceramic Shaft Hardness for Pumps 3
Frequently Asked Questions
Who are we?
We are a factory based in Beijing, China, with over 40 years of experience in ceramic bearing production. We maintain cooperative relationships with numerous domestic and international companies.
How do we guarantee quality?
We produce samples before mass production, strictly follow customer requirements, and conduct precise inspections using specialized equipment. Our double-layer packaging (foam and carton) ensures product protection during transit.
What products do we offer?
Ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic bearings, linear bearings, and various ceramic balls.
Why choose us over other suppliers?
As an integrated industry and trade company with three factories, we utilize modern production and inspection equipment to ensure superior product quality and reliable delivery schedules.
What services do we provide?
We offer high-quality products and fully customized solutions tailored to user needs, including sample provision for customer confirmation.
Contact Us for Your Ceramic Shaft Needs
We specialize in bearing research, development, production, and sales, using premium materials to manufacture each component with precision. Customer satisfaction drives our commitment to quality products and excellent service.
We welcome your inquiries and look forward to discussing potential cooperation opportunities.
