Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance

  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Lugar de origen China
Nombre de la marca CSQ
Certificación FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Número de modelo productos personalizados
Cantidad de orden mínima 20-50 PC
Precio negotiable
Detalles de empaquetado Caja de espuma y cartón
Tiempo de entrega 20-45 días del trabajo
Condiciones de pago T/t
Capacidad de la fuente 2000 piezas por mes

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
nombre Transporte de desplazamiento de cerámica modificado para requisitos particulares Categoría Transporte de cerámica de la bomba
El material Carburo de silicio sinterizado sin presión/circonio Tamaño Personalizado, de acuerdo con los dibujos
Usar Bomba de motor enlatada Paquete Caja de espuma y cartón
Palabra clave con un contenido de aluminio superior a 10%, pero no superior a 50% Tipo pieza crucial de la transmisión
Resaltar

Silicon Carbide sliding bearing for pumps

,

Corrosion resistant ceramic sliding bearing

,

Canned motor pump sliding bearing
Deja un mensaje
Descripción de producto
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Product Specifications
Attribute Value
Name Customized ceramic sliding bearing
Category Ceramic pump bearing
Material Pressureless sintered silicon carbide/Zirconia
Size Customized, according to the drawings
Use Canned motor pump
Package Foam + carton box
Product Description

Sliding bearing is a crucial transmission part, serving as the support and rotary unit of canned motor pump. With excellent corrosion resistance and wear resistance properties, silicon carbide (SSiC) is one of the best materials for pump sliding bearings.

Key Features
  • High Load Capacity: Made of high-strength alloy steel and SSIC for extreme pressure/temperature resistance
  • Low Friction: Hardened surface or coatings reduce wear
  • Dynamic Balance: Precision-balanced to prevent vibrations at high speeds
Applications
  • Aerospace (engine thrust systems)
  • Energy (wind turbines, gas turbines)
  • Industrial machinery (pumps, gearboxes)
Canned Motor Pump Applications

1. The canned motor pump is suitable for typical corrosive environments involving inorganic substances, acids, alkalis, and salts. In these applications, sintered silicon carbide (SSiC) serves as the standard material for sliding bearings.

2. The canned motor pump can operate in both common corrosive conditions and with media that are prone to vaporization.

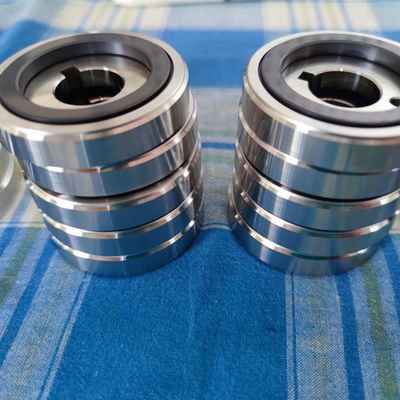

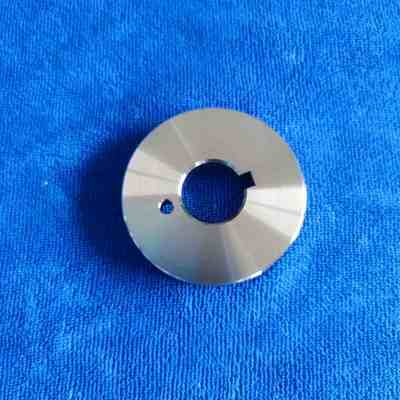

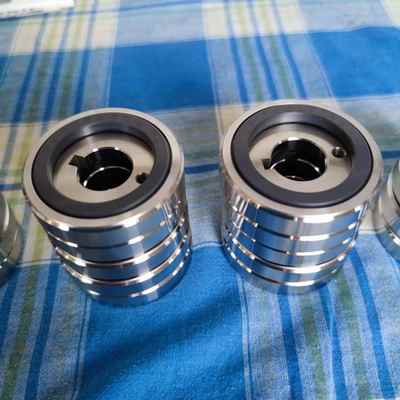

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 0 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 1
Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

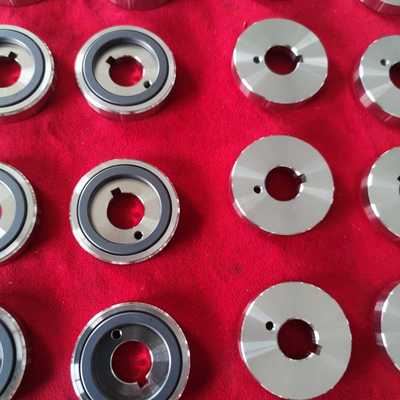

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 2
Our Manufacturing Capabilities

We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering, and processing machinery.

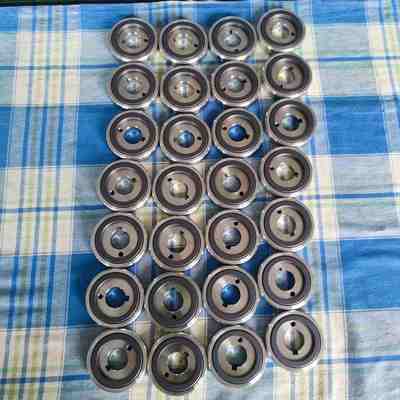

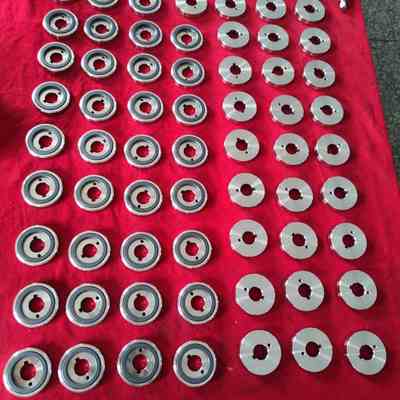

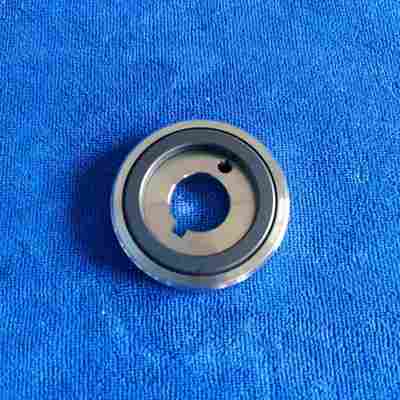

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 3 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 4 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 5
