Advanced Ceramic Sleeve For Industrial Applications High Temperature Tolerance And Corrosion Resistance
| Lugar de origen | China. |
|---|---|
| Nombre de la marca | CSQ |
| Certificación | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Número de modelo | productos personalizados |
| Cantidad de orden mínima | 20-50 PC |
| Precio | negotiable |
| Detalles de empaquetado | Caja de espuma y cartón |
| Tiempo de entrega | 20-45 días del trabajo |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 2000 piezas por mes |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | Cojinete liso de desplazamiento de cerámica modificado para requisitos particulares | Categoría | De las partidas siguientes: |
|---|---|---|---|
| El material | Carburo de silicio | Tamaño | Modificado para requisitos particulares, según los dibujos |
| Aplicación | Bombas | Paquete | Caja de espuma y cartón |
| Calidad | Alta precisión, larga vida, serie OEM | Especificación | Tamaño estándar y personalizado |
Descripción de producto

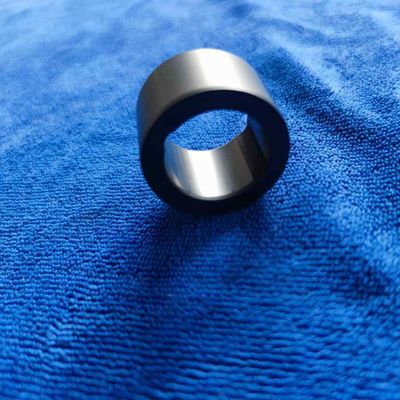

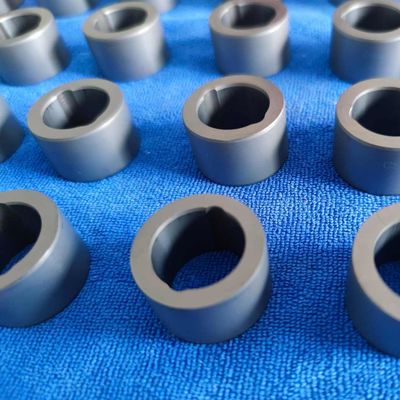

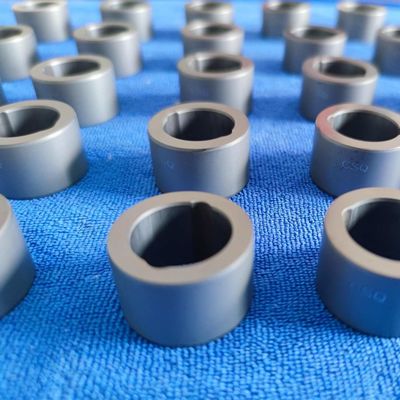

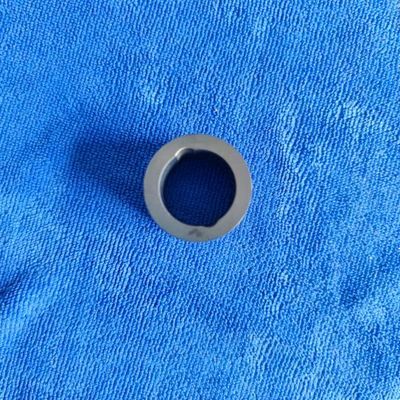

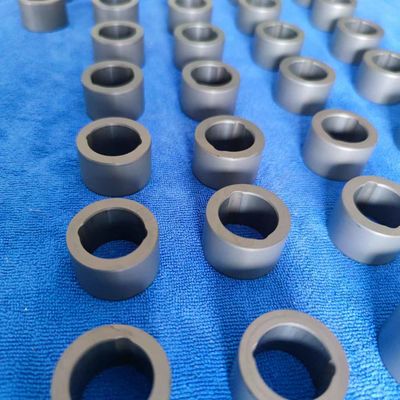

Custom High-Temperature Silicon Carbide (SiC) Ceramic Bearing Sleeves
Product Specifications
| Attribute | Value |
|---|---|
| Name | Customized ceramic sliding sleeve bearing |
| Category | Ceramic sliding bearing |
| Material | Silicon carbide |
| Size | Customized, according to drawings |
| Application | Pumps |
| Package | Foam + carton box |
| Quality | High precision, Long life, OEM service |
| Specification | Standard size and customized |
Product Overview
Custom-engineered silicon carbide (SiC) sliding bearing sleeves represent a cutting-edge solution for demanding industrial, automotive, and aerospace applications. These precision components deliver superior performance compared to conventional steel bearings.
Key Advantages
- Exceptional Corrosion Resistance: Silicon carbide's inherent stability ensures outstanding resistance to corrosive chemicals and harsh environments.
- Reduced Friction & Wear: The ultra-smooth, high-hardness surface minimizes friction and wear, enhancing operational efficiency.
- High-Temperature Durability: Maintains structural integrity in extreme heat, perfect for high-temperature applications.
Applications
Aviation & Aerospace (turbine components, propulsion systems)
Oil & Gas (pump shafts, drilling equipment)
Automotive & Racing (high-performance engine parts)
Chemical Processing (corrosive fluid handling)
Power Generation (turbine bearings, high-speed rotors)
Medical & Semiconductor (precision instruments, cleanroom machinery)
Material Properties
- Max Temperature up to 1650℃
- Low density: 3.15-3.18 g/cm³
- High strength and hardness (2800 HV5)
- Low thermal expansion: 4.0 (10-6/℃)
- High thermal conductivity: 120 W/m°K
- High elastic modulus: 410GPa
- Superior chemical stability, resistance to acid and alkali corrosion
Advantages vs. Steel Bearings
- Higher temperature resistance (up to 1650℃)
- Superior performance in thermal cycling
- Enhanced anti-seizure & anti-jamming properties
- Oil-free operation capability
- Exceptional corrosion resistance
- Electrical insulation & anti-static properties
- Non-magnetic & contamination-resistant
Manufacturing Capabilities
With three factories in China and advanced pressing, sintering, and processing machines, we specialize in customized ceramic bearing solutions. Our company possesses eleven invention patents and has been manufacturing ceramic bearings since 1982.
Our Advantages
- Free sample bearings available
- ISO standard compliant production
- In stock bearings for quick delivery
- Small order quantities accepted
- OEM bearing service
- Customized bearing solutions
- Competitive factory pricing
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, serving domestic and international clients.
How do we guarantee quality?
We produce samples before mass production, conduct precise inspections, and use double packaging (foam + carton) to ensure product quality.
Why choose us over other suppliers?
As an integrated company with three factories and modern equipment, we offer better delivery times, product quality, and customized solutions.
Contact Us
We cooperate with raw material suppliers to ensure stable quality and pricing. Our customer-focused approach delivers quality products and after-sales service. Contact us to discuss your requirements.
